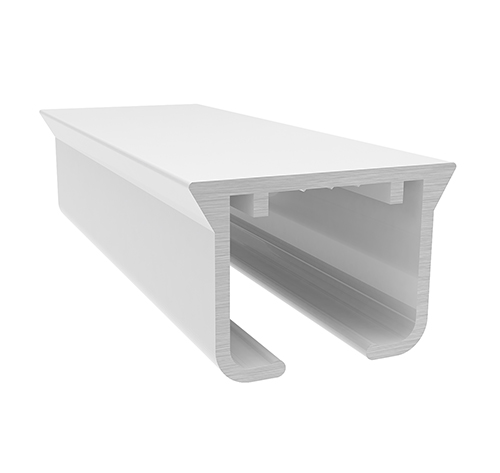

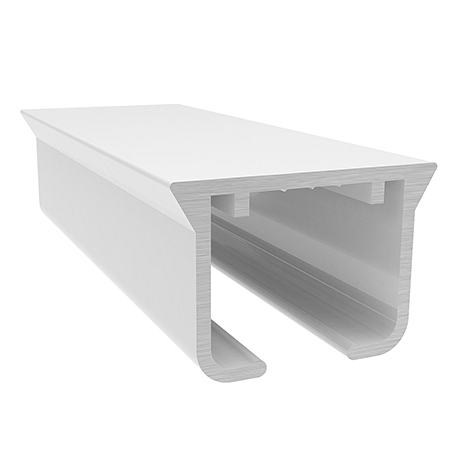

Alu karnisa Elegant 1100

Elegant 1100 is a new designed curtain track, that fullfills the range of proffessionel tracks. The smooth curves and strong ”wings” makes the 1100 profile ideal for many mounting purposes.

Curtain track : 1100
Use: Curtaintracks with light-heavy
curtains
Mounting: Hidden bracket for ceiling,
and brackets.
Material: Aluminium alloy 6060/T6
Anodizing: 10 my
Lacquering: Polyester lacque 180 my-
min 100 my
Colours: Silver and white as standard.
All other RAL colours on demand
Accessories: Plastic/metal
Track width: 6,0 mm
Ext. dimensions: 14 mm x 10 mm
Length: 6000 mm
Thickness: 1,0 -1,2 mm
Load per mtr: Maximum 4 kg per mtr
Bending: 10 cm radius
Milling: No
Webster no: B minimum 11
Recomended glider: 5738, 5739
Webster no: B minimum 11
Recom. glider: 4050 with silicone
